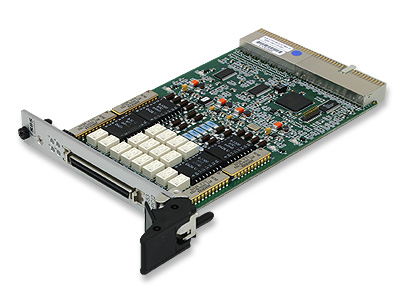

ASF-cPCI3U2
Single function for CompactPCI backplanes
Single function for CompactPCI backplanes
This product reached the end of its lifecycle (end-of-life) on June 25, 2010Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us. |
Overview
ASF-cPCI series of cards is designed to meet the requirements of both laboratory and ruggedized applications, with seamless transition from development environment to deployable system. A flexible, single function, dual redundant MIL-STD-1553 interface to the cPCI backplane allowing independent operation as a Bus Controller (BC), Remote Terminal (RT), or dual function Bus Monitor (BM).
- Optional 48-bit IRIG-B clock input
- 1 channel. Up to 4 channels available
- Compact PCI 3U form factor
- Extended temperature range available
Specifications
Form Factor
cPCI 3U
Application
Lab, Simulation, Test
Temp Range
Commercial XT
1553 # Channels
1 to 4
Downloads
Software & Drivers
- (F201) Full Function Standard I4
- (F203) Full Function IRIG I2
- (F205) Full Function Custom F3
- (F209) Full Function Error Injection C
- (F211) Full Function Custom C
- (F212) Custom Firmware D3
- (F213) Custom Firmware A
- (F214) Full Function Custom B
- (F215) Full Function Custom, with Watchdog Timer A
- (F216) Custom, No AutoRun Capability A5
Manuals
Notices
- AN-013 Moving from SBS to Abaco 1553 Products
- Avionics Card Installation
- Extended Remote Terminal Data Buffers
- F216 Release Notes
- Full Function Firmware for cPCI3U2/PMC2
- Full Function Firmware Non-Standard Mode Codes
- MDBA Modifications - PMC2/cPCI3 1553 Full Function
- AN-15 BusTools/1553-API and Core API Software Comparison
