A429-PCI

8 channels for PCI
A429-PCI

This product entered a Restricted Production Phase (RPP) on July 1, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

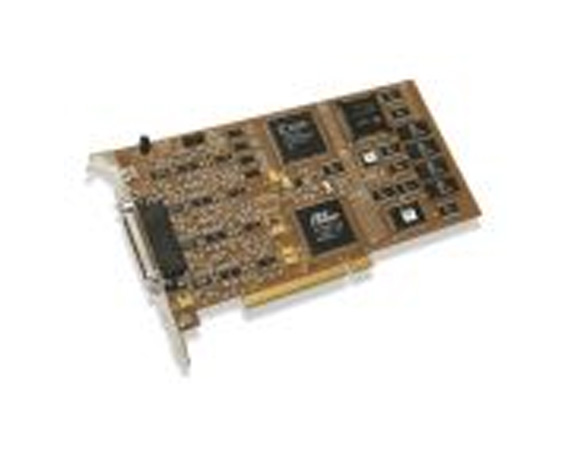

A429-PCI provides 8 programmable ARINC channels for the PCI backplane. Each channel is software configurable for transmit or receive, high or low speed (12.5 or 100 kbps) and ARINC 429 or 575 protocols. The on-board DSP controls the flexible data structures, triggers, interrupts, time stamping, and data communications on the 429 bus. External triggers can be used for synchronization while the advanced interrupt technology allows real time event handling by the host processor.

This product is in a Last Time Buy (LTB) window while supply lasts. The LTB is planned to continue through to the end of June 2011, after which this product will no longer be sold by Abaco Systems . Product Lifecycle Management services are recommended. Click on the tabs below if you require documentation, software or support. If you have questions about this product, or any other Abaco Systems product, including delivery, migration support to the latest design products, comparative price benefit of latest products, or evaluation needs for latest products, please contact u.





  • PCI form factor
  • Source lists can be transmitted by any channel
  • Sink data can be filtered and received in a current value table, local and/or global monitor buffers
  • Data words can be identified and sorted by either Label or Label/SDI





Specifications

# ARINC Channels:
8
Analyzer
PASS
Application
Lab, Simulation, Test
Form Factor
PCI
IRIG Time Code Option
Yes
Protocol
575
Temp Range
Commercial
