830

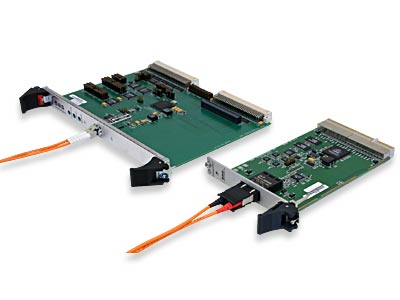

VME64 to CPCI bus-to-bus adapter with DMA

830

This product reached the end of its lifecycle (end-of-life) on July 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


The VME64 to CompactPCI bus-to-bus adapter directly connects two buses. The virtual bus created allows the two systems to operate as one enabling seamless operation, superior performance, the combined benefits of two diverse systems. The adapter allows each bus to operate independently. The timing of the two buses is linked only when a memory or I/O reference is made to one system that translates to a reference on the other. Therefore, bus bandwidth is not affected during non-transfer periods. Because the adapter does not require protocol stacks, it transfers data very efficiently. Remote data can be accessed directly by the processor as if it were stored in local hardware memory. Or, it can be transferred to local memory using the DMA engine. Either way, the adapter is designed to transfer data with minimum processor loading. A comprehensive suite of software drivers is provided for the CPCI card to minimize integration time. In most cases, applications can be up and running in a few days. Drivers for Solaris, IRIX, Windows XP/2000, VxWorks and Linux are provided.


  • Streamlined no-protocol connectivity
  • Memory and I/O mapping
  • Bi-directional bus mastership
  • Controller Mode DMA: 70 MB/s

Specifications

Slave Mode DMA (MB/s)
N/A
Cable Interface
Fiber to 500m
Cards Included
1 VME64
Controller Mode DMA (MB/s)
70
Interrupts
IRQ1-7
Loopback Diagnostic
Yes
Memory Mapping
Yes
Optional Dual Port RAM
128 KB & 8 MB
