RL4R

RL4R - Single Slot PowerPC CPCI Single Board Computer
RL4R

This product entered a Restricted Production Phase (RPP) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

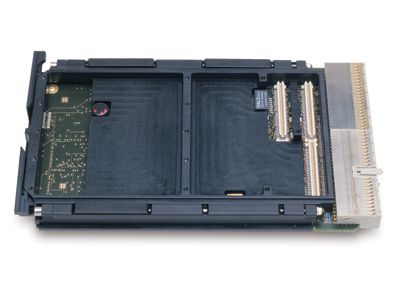

The RL4R features an ultra compact single slot, all-in-one design with flexible processor and memory configurations, and a wide array of onboard peripherals, fast Ethernet, timers, serial channels and a 32-bit PMC interface.

Rugged and military needs are addressed with optional conduction cooling and extended temperature range of up to -40°C to +85°C, increased shock and vibration immunity using stiffener bars and wedge locks, and conformal coating. Even with an attached conduction cooled PMC module, the RL4R fits into a single slot.

Special features include four serial channels with flexible RS-232 and RS-422/485 interfacing, two DMA controllers, four timers, 32 kBytes non-volatile SRAM, RTC, watchdog, temperature sensor and I2O intelligent I/O support.  Abaco Systems supports VxWorks





  • MPC755 @ 400 MHz
  • 4x Serial channels
  • System Controller
  • Air and conduction cooled







Specifications

# Expansion Slots:
1
Form Factor
cPCI 3U
Maximum Memory
128 MB DRAM with ECC
Processor
MPC755 @ 400 MHz
Ruggedization
Level 1-5 Air, Conduction Cooled
Serial I/O
4
System/ Peripheral
System
Transition Modules
RLTM
