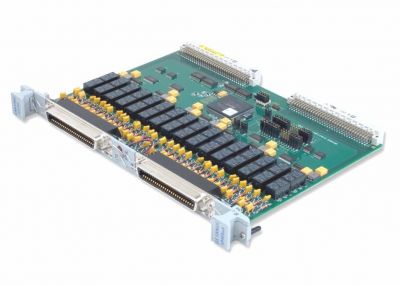

VME-2232A Relay Output Board

32-channel Relay with Built-in-Test (BIT)
VME-2232A

This product entered a Restricted Production Phase (RPP) on March 22, 2023

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

VME-2232A is a 32-Channel Relay Output Board with Built-in-Test (BIT).  Software compatible with the VMIVME-2232 and the VMIVME-2533.

  • 32 relay output channels (one form C relay per channel)
  • Contact ratings
    • 60W, 50 VA maximum switching power
    • 220 VDC, 250 VAC maximum switching voltage
    • 2A maximum switching current
    • 3A maximum carry current
  • Optional contact protection electronics for DC operation
  • 8-, 16-, or 32-bit data transfers
  • Built-in-Test (all active components are tested)
  • Front panel with fail LED
  • Compatible with the Intelligent I/O Controllers
  • VxWorks driver available
  • Software compatible with the VMIVME-2532 and the VMIVME-2533





Specifications

Channels
32 Output
Data Transfer Bits
8, 16, 32
Form Factor
VME
I/O Voltage Range
220 VDC, 250 VAC
Interface
Relay outputs - Front I/O
