PowerPact3 IMP2A

3U CPCI Power Architecture 7448
PowerPact3 IMP2A

This product entered a Restricted Production Phase (RPP) on November 30, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

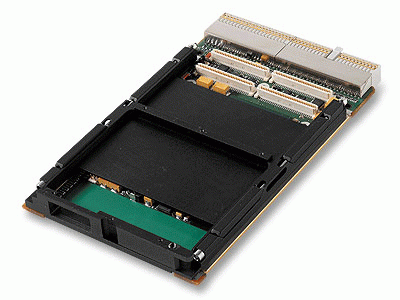

Designed for demanding, rugged computing applications with restrictive dimensional requirements, IMP2A packs a powerful CompactPCI SBC into an extremely space-efficient 3U form factor. IMP2A offers a seamless technology insertion opportunity for existing IMP1A users and an ultra-high performance computing entry point for new users.

IMP2A's impressive processing core is based around a Freescale 7448 Power Architecture processor and a Marvell Discovery 3 Integrated System Controller which combines high bandwidth memory control and PCI bridging with an array of communication peripherals, including high speed serial and Ethernet ports, all on a single chip. A range of I/O options is offered including up to two Gigabit Ethernet channels, up to 12 bits of discrete digital I/O, and up to two serial channels capable of high speed operation in either asynchronous or synchronous mode and software programmable as RS-232/422 or 485.



  • Freescale 7448 Power Architecture @ 1.4 GHz
  • For Ruggedization Levels, please see the configuration guide under the downloads tab
  • Air and conduction cooled
  • PCI-X PMC site


Specifications

# Expansion Slots:
1
Bus Interface Chip
Marvell Discovery 3
Ethernet
Gigabit Ethernet
Form Factor
cPCI 3U
Maximum Memory
Up to 1 GB DDR2 SDRAM with ECC
Processor
7448 @ 1.4 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled
Serial I/O
2
System/ Peripheral
Both
Transition Modules
CPCI3UX600
