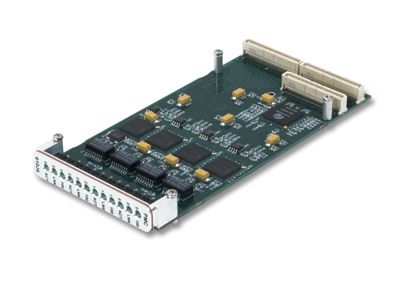

PMC610J4

Quad 10/100BaseTX Ethernet PMC NIC with Rear I/O
PMC610J4

This product entered a Restricted Production Phase (RPP) on September 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

PMC610J4 is a PMC 10/100BaseTX Ethernet NIC with four 10/100Mbit Ethernet ports routed through the rear panel. The four 10/100BaseTX Ethernet engines are each capable of full duplex operation in both 10 and 100 Mbit modes. Each of the Ethernet/PCI interfaces includes a powerful DMA engine with very deep FIFO buffers. This assures continuous, full bandwidth operation with minimum PCI overhead. A PCI to PCI bridge couples the Ethernet interfaces to the host PCI bus, assuring high performance with minimum PCI loading. The PCI bus can run at 66 MHz. PMC610J4 features full auto-negotiation allowing automatic configuration to the highest possible operating mode. This includes the option for automatic determination of both bandwidth and full duplex operation. Two PMC610J4 NICs can be directly cabled with a simple "cross-over". This configuration creates a full duplex 800Mbit dedicated data path -- delivering high bandwidth at very low cost. More complex, dedicated interconnects can be created using a hub or switch. Both point-to-point and switched hubs, in full duplex mode, remove many determinism concerns raised with traditional Ethernet solutions. This makes the PMC610J4 an excellent candidate for high performance interconnects that require real time determinism. Software drivers are available for most popular operating systems such as VxWorks, Linux, LynxOS,and Windows NT. These drivers have been carefully designed and implemented to fit within the LAN protocol stack of the host operating system. Thus all facilities available from the host OS can be used across the PMC610J4. These drivers allow user control over the PMC610J4 auto-negotiation capability.



  • Acrylic or polyurethane conformal coating available
  • Wide operating temperature range versions available
  • Dual port version available
  • PMC610J4RC is the RoHS compliant version of the PMC610J4
  • Full duplex operation in both 10 and 100 Mbit modes
  • TCP/UDP checksum off loading
  • Fully supports IP Security (IpSec)
  • Rear I/O with J4 connectors
  • PCI 66MHz capable
  • Four 10/100BaseTX Ethernet ports

Specifications

Form Factor
PMC
Media
Copper
PCI Controller/ Ethernet MAC
Intel 82551ER
Port Type
10/100BaseTX
Ports
4
Rear Panel I/O Connectors
J4
