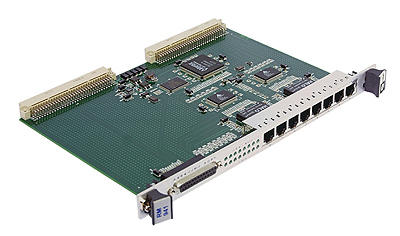

NETernity™ RM941

NETernity Layer 2/3 unmanaged 6U VME 8-port 10/100BaseTX Ethernet switch with front I/O
NETernity™ RM941

This product entered a Restricted Production Phase (RPP) on January 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

NETernity™ RM941 is a fully integrated 8-port 6U VME 10/100BaseTX Ethernet switch designed to support the low-cost requirements of unmanaged switch applications and converging networks. The QoS technology allows low cost unmanaged switches to carry voice, and data traffic without having to compromise the quality of its voice traffic by using the packet prioritization scheme. Packets are prioritized based upon their Layer 2 VLAN priority tag or the Layer 3 Type-Of-Service/ Differentiated Services (TOS/DS) field. This priority can be defined as transmit and/or drop priority. The RM941 has no interface to the VMEbus (only power and ground). Customers can change the factory default port setting. The RM941 has a parallel port which can connect to a PC parallel port. The tool provided runs under Windows 98 and the setting is stored on non-volatile memory. The setting can take effect immediately or on the next power up.



  • Up to 8 port based VLANs
  • Provides both Full/Half duplex ports
  • Allows explicit identification of IP phone ports
  • Input ports are defined to be high or low priority
  • Provides port-based prioritization of packets on 4 ports
  • Enables mixed voice-data networks
  • Auto address learning and Auto address aging Leading edge QoS capabilities, based on 802.1p and IP TOS/DS field
  • 1k MAC address table
  • Full wire speed Layer 2 switching on all ports
  • Front I/O
  • Single slot 6U VMEbus
  • 8 auto-negotiating 10/100BaseTX Ethernet Ports
  • Flow Control capabilities including back pressure for half-duplex and 802.3x flow control for full-duplex
  • Industrial temperature version available
  • Not recommended for new designs -- see NETernity RM981RC for new designs

Specifications

Form Factor
VME 6U
Management Type
Unmanaged Layer-2
Port Type
10/100BaseTX
Ports
8
