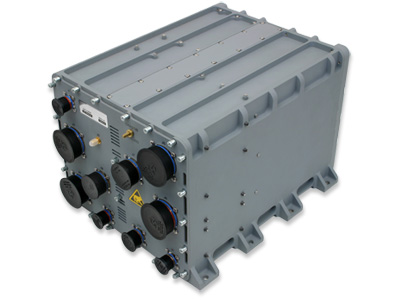

AVC-cPCI 3001 Advanced Vehicle Computer

3U CompactPCI rugged computing platform
AVC-cPCI 3001

This product entered a Restricted Production Phase (RPP) on February 1, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The AVC-cPCI 3001 provides a rugged, yet highly flexible COTS computing platform suited for mission applications requiring rock-solid reliability such as UAVs, booster vehicles, and ground vehicles. Manufactured using Electrical Discharge Machining (EDM) and milling, the aluminum alloy (6061-T6) is strong, lightweight, and resistant to EMI.

At 8.65" H x 11.26" W x 13.6" D, the 300 watt, 3U cPCI 14-slot configuration provides three 2nd generation CM4 PowerPC processors, 24 channels of RS-232/422/485 high speed serial, 4 dual redundant 1553 channels, fibre channel, Ethernet, and 1394 Firewire interfaces, and a GPS receiver. In addition, the DIO2 and DIO3 cards together provide over 150 various types of inputs and outputs including; discrete, analog, excitation, gear sensor, and coil stepper. The AVC-cPCI 3001 weighs under 33 lbs and dissipates under 148 watts of power through conduction cooling.

  • Highly flexible input and output options including high speed serial, Fibre Channel, ethernet, 1553, GPS, and Firewire
  • CM4 Single Board Computer with PowerPC Motorola 7410/750/755 400-500 Mhz processor
  • Single 300 watt, or dual redundant 150 watt power supply
  • 14, 3U cPCI slots



Specifications

Form Factor
cPCI 3U
Power Supply
16-40 VDC, 300W
Slots
14
