RES3000 SERIES
Features
Mechanical
Application Story
Specifications
Related Downloads
You May Also Like

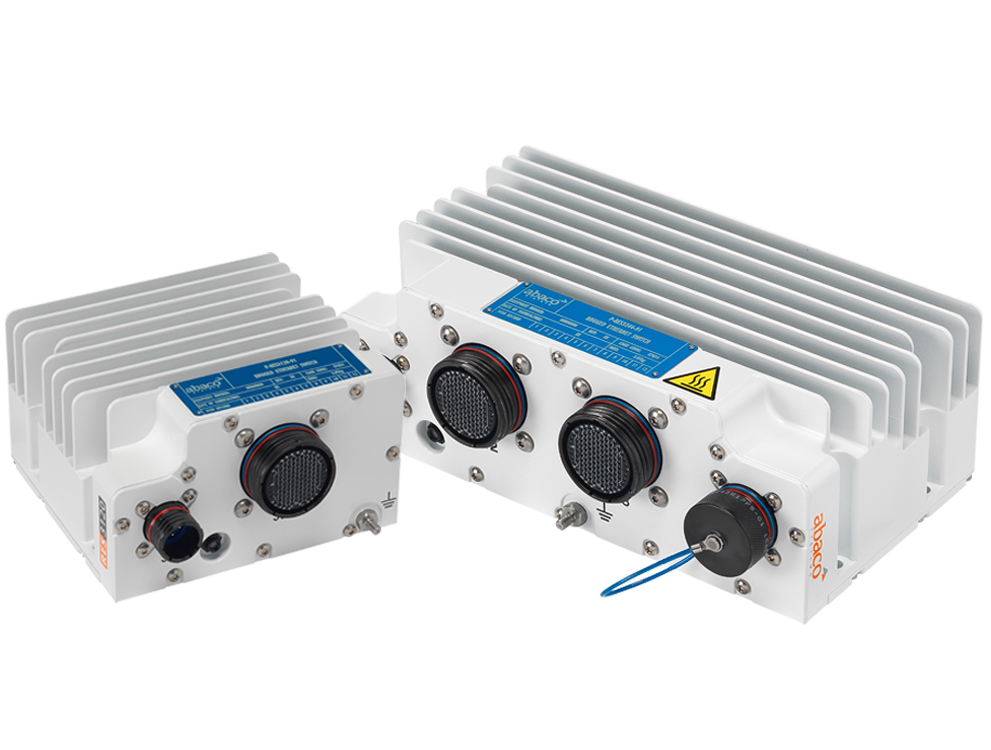

Small size doesn’t have to mean small performance.

All the capabilities of a fully managed, fully deployable rugged Ethernet switch, but measuring just 5.8" wide, 5.4" deep and 3.4" tall and weighing only 2.2lbs for the 12-port version. The RES3000 is a unique combination of powerful and petite.

Features

Form Factor

3U VPX

Port Type

1000Base-KX
10GBase-KX-4
40GBase-KR4
10GBase-KR
1000Base-T

Environmental Qualifications

MIL-STD-1275D (Ground)
MIL-STD-810G for harsh environments

Cooling Options

Natural conduction/convection cooled
baseplate cooled

imgnum - 0

imgnum - 1

imgnum - 2

imgnum - 3

imgnum - 4

imgnum - 5

imgnum - 6

imgnum - 7

imgnum - 8

imgnum - 9

imgnum - 10

imgnum - 11

imgnum - 12

imgnum - 13

imgnum - 14

imgnum - 15

imgnum - 16

imgnum - 17

imgnum - 18

imgnum - 19

imgnum - 20

imgnum - 21

imgnum - 22

imgnum - 23

imgnum - 24

Full Specifications

VICTORY compliance comes built in.

The RES3000 is designed to be at the heart of modern vehicle architectures, helping deliver actionable information to those who need it. And: it complies with the US Army’s C4ISR/EW interoperability standard.

-40C to +71C Operating Temperature

-40C to +71C Operating Temperature

RES3120: 3.5lbs (1.6Kg) <br>RES3240: 5.5lbs (2.5kg) <br>RES3244: 6.6lbs (3.0kg)

RES3120: 3.5lbs (1.6Kg)
RES3240: 5.5lbs (2.5kg)
RES3244: 6.6lbs (3.0kg)

Fully Rugged

Fully Rugged

VICTORY

Full Specifications

Flexibility so you can do what you need to do.

The RES3000 is driven by Abaco’s unique OpenWare switch management environment with all the configuration, monitoring, switching control, addressing and routing options you could ever need for ultimate customization.

BLOG: Ethernet Switches: Why Time Matters ARTICLE: Next-gen tactical Ethernet switches

Whatever you want.

Need 12 ports? Need 24 ports? Need 10GigE fiber uplinks? Three options are available so you can configure precisely the right solution for almost any application. We deliver choices so you don’t need to compromise.

Specifications

Cooling

Natural Conduction/Convection Cooled and Baseplate Cooled

Port Type

1000BaseT, 10GBASE-SR

Management Type

Fully Managed Layer-2/3+

Ports

12, 24, 28

Military Specifications

MIL-STD-810, MIL-STD-461F, MIL-SPEC-1275

Network Operations

L-2 and L-3 packets, including IPv6

Operating Temp

-40˚C to +71˚C

Weight lb (kg)

Up to 5.7lbs (2.6kg)

Product Type

Rugged Ethernet Switch

Software

OpenWare

OpenWare

The industry’s most flexible, most customizable, most scalable network management software – with multi-level security and the fastest start-up time.

Related Downloads

White Papers

Manuals

Brochures

Datasheets

Case Studies

Backed by experience.

With 20+ years of helping our customers solve the toughest – and most unusual –problems, our Networking Innovation Center is there as a resource for you to leverage. From special failover mechanisms to large multicast tables, we’ve done it all.

WHITE PAPER: Network Engineering for mission critical applications
