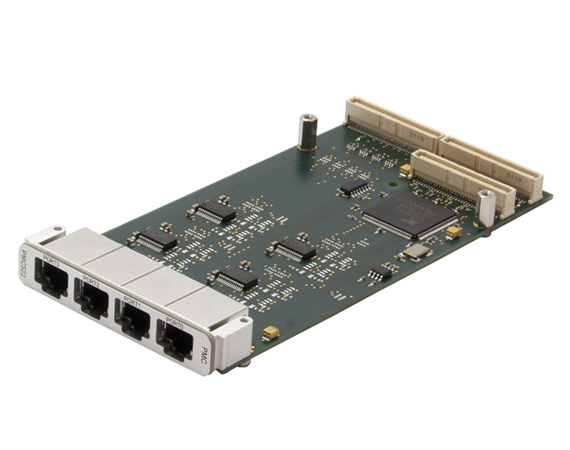

PMC522 Serial Controller

Four Port Serial I/O for VME and CompactPCI

PMC522

Overview


The PMC522 provides a uniquely effective solution for integrating serial I/O requirements into a VMEbus or CompactPCI system. Implemented on a single PMC card, the PMC522 is fully compatible with the current generation of VMEbus and CPCI single board computers, as well as any special purpose processor that includes a PMC connector.



  • Four general purpose RS-232 inputs
  • Read/write burst operation
  • Data transfer in byte, word, and double-word
  • Four ports routed to the front utilizing RJ-45 connectors or four ports routed to the rear via P14
  • PMC/PCI form factor

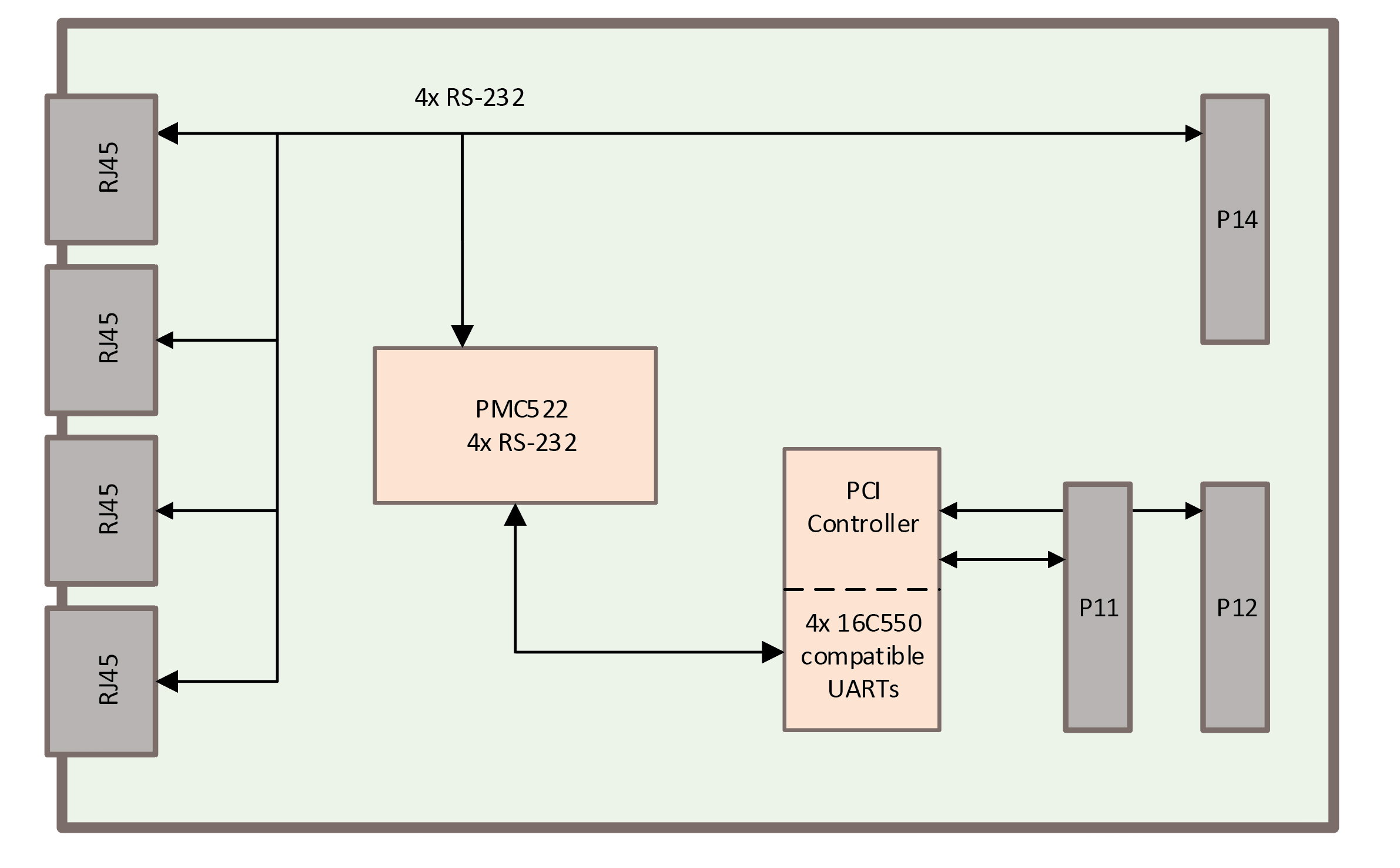

Block Diagram

Specifications

Form Factor
PMC/PCI
Conformal Coating
Option
Ports
4
Front I/O
Yes
Rear I/O
Yes
Interface
RS232
Platform
PMC, VME, cPCI
