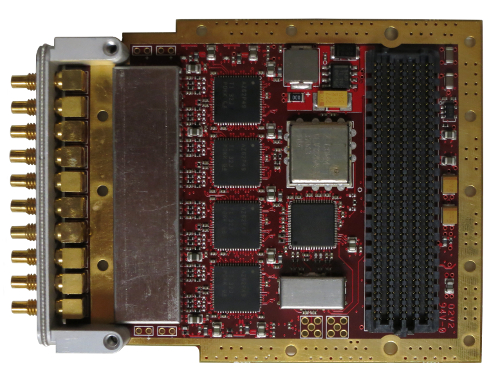

The FMC108 is an 8-channel ADC FMC (FPGA Mezzanine Card) which is fully compliant with the VITA 57.1-2010 standard.The FMC108 card provides eight A/D 14-bit 250 MSPS channels which can be sampled by an internal clock source (optionally locked to an external reference) or an externally supplied sample clock. A trigger input for customized sampling control is also available.
The FMC108 has the HPC (high pin count) connector, front panel I/O, and is conduction cooled compliant. The board is also available with Mil-I-46058c compliant conformal coating. Another important featured of the FMC108 is the ability to cascade multiple FMC boards supported by a single clock frequency.
The design is based on the TI ADS62P49 Dual Channel 14-Bit 250 MSPS A/D with programmable DDR LVDS or parallel CMOS (LVCMOS) outputs. The analog signal inputs can be either single ended or differential, AC- or DC coupled connecting to SSMC coaxial connectors on the front panel.
The FMC108 allows flexible control on sampling frequency, analog input gain, and offset correction through serial communication with a carrier card. Further, the card is equipped with power supply and temperature monitoring and offers several power-down modes to switch off unused functions.
Board Support Package
Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.
