CRS-D8I-3VF1 COTS Rugged System

Half ATR application-ready data processing system
CRS-D8I-3VF1 COTS Rugged System

Overview

Meet any number of configurations

The CRS-D8I-3VF1 VPX system’s I/O flexibility is capable of meeting a large number of configurations. It is designed to support Abaco Systems’ Intel 3rd generation Core i7 3U SBCs, Gigabit Ethernet switch, video compression card, CUDA-based graphics cards and a MIL-STD-1553/ARINC429 multi-protocol card.

Designed for most demanding environments

The CRS-D8I-3VF1 is powered by a 28 VDC power supply that meets MIL-STD-704F as well as having the option to support a 115 VAC, 400Hz single-phase power supply. This data processing system provides a rugged and highly flexible computing platform suited for applications requiring absolute reliability such as civilian and military unmanned vehicless, manned commercial and military aircraft, helicopters, over- and underwater research vessels, and ground vehicles.

Jump Start your Project

Ready-made solution that is pre-integrated and pre-tested, that requires no NRE, is readily available and costs substantially less than assembling the piece parts. Abaco Systems has integrated and tested the CRS-D8I-3VF1 and provides Board Support Packages (BSPs) and drivers that can easily be usde to integrate the application and reduce software development lifecycle.

To help jump start a project, Abaco Systems offers laboratory development units, or starter kits, pre-configured for development purposes. Based on the required system controller architecture and bus system, Abaco Systems can provide the appropriate development system for specific needs.

Abaco Lightning:

Bringing ‘off-the-shelf’ back to COTS.

More Details

Specifications

Cooling
Conduction Cooled (Forced Air)
Form Factor
VPX 3U
I/O
ARINC 429, Audio, Discrete, DVI, Gigabit Ethernet, GPIO, GPS, MIL-STD-1553, Serial, USB, VGA
Operating System (OS) Support
Linux, Windows
Operating Temp
-40˚C to +55˚C
Processor
3rd Gen. Intel Core i7
Slots
8
Weight lb (kg)
22 lbs (9.98 kg)

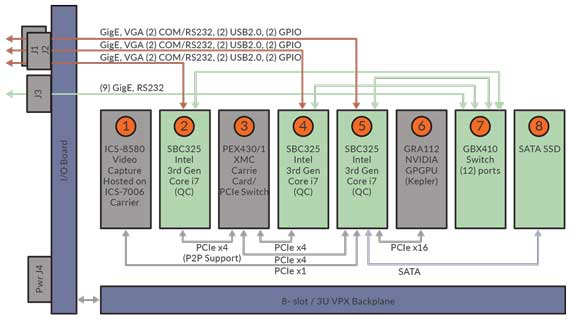

Block Diagram
