CP3-GESW8-TM8

3U CPCI rear-panel I/O transition module with 8 RJ-45 ports for NETernity™ CP3-GESW8 switches

CP3-GESW8-TM8 3U CPCI rear-panel I/O transition module with 8 RJ-45 ports for NETernity™

Overview

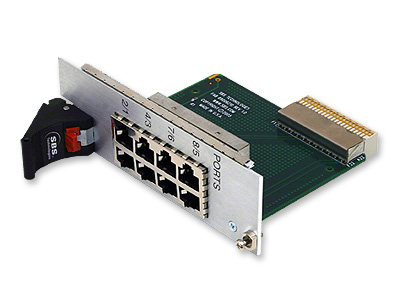

CP3-GESW8-TM8 is a rear-panel I/O transition module providing flexible access to CP3-GESW8 or NETernity™ CP3-GESW8N rear-panel I/O. Up to eight Gigabit Ethernet ports of the switch are accessible from the transition module's stacked RJ-45 connectors. Each Ethernet port is routed as four 100 Ohm differential pairs.

  • Supports 8-port 10/100/1000BaseT Ethernet line speed
  • 3U CompactPCI form factor with rear-panel I/O
  • Rear-panel I/O support for NETernity™ CP3-GESW8 or CP3-GESW8N
  • IEEE 802.3 compliant
  • Ethernet/LAN Resource Center

Specifications

Form Factor
cPCI 3U
Port Type
10/100/1000BaseT
Ports
8
