Overview

Small, versatile, and tough

The SAYBRX is a highly flexible rugged industrial small form factor (SFF) computer for a modular and scalable approach to system design and architecture with variants for both lab and rugged use. When a 3U VPX system is either too large for the given space constrictions or too costly, SAYBRX allows developers to focus their resources and priorities on software and intellectual property instead of hardware.

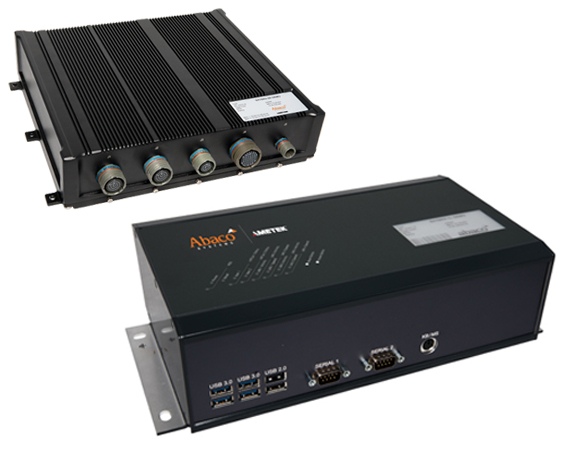

The rugged units are designed to be deployed in harsh environments (up to IP67, -40°C to +75°C baseplate). Lab variants can be used for development and test as well as full deployment in moderate environments (up to IP54, -20°C to +40°C baseplate). These computers address the need for compact, rugged computer systems for data, I/O, and graphics/video processing in 8-36VDC applications in both commercial and military sectors and are ideal for use on mobile applications including industrial AGVs, off-road utility equipment (forestry, agriculture, construction, mining, etc.), railway, maritime, and avionics applications.

Modularity and flexibility to do more

The SAYBRX features the Intel® Core™ i7-9850HE @ 2.7 / 4.4 GHz TurboBoost and optional NVIDIA® Quadro® P2000 GPU. Power consumption depends on configuration but is typically around 30W@28VDC. The SAYBRX family offers all I/O available in the DAGRX but adds more USB, serial, DVI-I, and DisplayPort options. Expansion is via XMC/PMC, mPCIe and M.2. SAYBRX offers BIOS to support Windows, Linux, OpenGL, DirectX, NVIDIA® PhysX®, and NVIDIA 3D Vision®.



Specifications

Application
Development, Rugged, Video & Graphics, Embedded
Cooling
Convection, Conduction
Environmental
MIL-STD-810G, DO160, MIL-STD-461G
Ethernet
1000BaseT
Form Factor
Small Form Factor Package
I/O
ARINC 429, Audio, CANbus, DisplayPort, DVI, Ethernet, GPIO, GPS, MIL-STD-1553, SATA, Serial, USB, RS 232/422/485
Military Specifications
MIL-D38999 connectors, MIL-STD-810G, DO160, MIL-STD-461G
Operating System (OS) Support
OpenGL, DirectX, NVIDIA® PhysX®, NVIDIA 3D Vision®
Operating Temp
-40˚C to +75˚C
Processor
Intel Core i7
Storage
64GB SSD
Variable Voltage
Yes
Weight lb (kg)
~7 lbs (~3.2 kg)

Block Diagram
