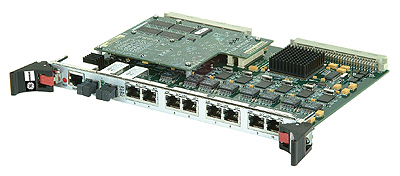

NETernity™ RM920

NETernity 6U VME 24-port Layer 2/3/4, managed Gigabit Ethernet switch

NETernity™ RM920

This product reached the end of its lifecycle (end-of-life) on December 31, 2007

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.


NETernityâ„¢ RM920 is a full wire speed, managed Layer 2/3/4 switch for VME applications. It offers 24 Gigabit Ethernet ports with Layer 3 support for routing. RM920 is ideal for applications that need both front and rear ports and/or a mix of copper and fiber media. This 24-port switch is a dual slot solution; 20 ports front panel, 4 rear P2 ports. All ports that are routed to the front panel can be provided with mixed combinations of copper (RJ45) and fiber (LC) connectors. All the ports are switched ports. RM920 is a high level solution with fully managed capability via serial console, Telnet or SNMP.

  • Motorola XPC8240 management processor
  • Managed solution
  • Full wire speed
  • Combination of copper / fiber ports
  • 20 front panel ports; 4 ports routed to rear I/O
  • 24 Port Gigabit Switch (dual slot)
  • Layer 2/3/4 Switching
  • 6U VME form factor
  • Industrial temperature version available
  • 12-port single slot version available


Form Factor
Port Type
Management Type
Fully Managed Layer-2/3+
