NETernity™ CP934

6U CompactPCI NEBS-compliant Layer 2/3/4 managed Ethernet switch

NETernity™ CP934

This product reached the end of its lifecycle (end-of-life) on December 31, 2006

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

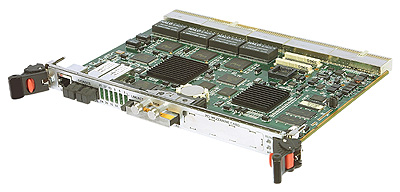

CP934 is a PICMG® 2.16 compliant Layer 2/3/4 managed switch designed to meet NEBS requirements. It is a Carrier Grade Switch. The CP934 has 24 10/100TX ports compliant to the PICMG 2.16 specification and two fiber Gigabit Ethernet ports on the front panel. The onboard PowerPC processor runs the Linux operating system, permitting easy and open tools for adding customer specific software. The powerful management features of the CP934 can be accessed via Web Server, Telnet or SNMP or a local control console via RS232. Furthermore, an onboard PowerPC® processor, running the Linux® operating system, permits easy and open tools for adding customer and applications specific software.

  • Layer 2/3/4 switching
  • 24 port 10/100BaseTX, rear I/O
  • Two Gigabit Ethernet fiber or two Gigabit Ethernet copper uplinks
  • MDIX for cross and non-cross cabling detection
  • Two RS232 serial ports
  • PMC slot for additional connectivity
  • Full wire speed on all ports
  • PICMG 2.16 compliant
  • PICMG 2.9 IPMI compliant
  • Hot Swap with blue LED
  • 802.1w Rapid Spanning Tree algorithm
  • Multicast and broadcasting
  • VLAN support 802.1Q-ID tagging
  • QoS capable
  • SNMP management
  • Bandwidth management
  • Port setup, statistics & mirroring


Form Factor
Port Type
Management Type
Fully Managed Layer-2/3+
