DAGRX

Small Form Factor Computer with IntelTM Processor and Flexible I/O for Industrial and Rugged Applications.
DAGRX

Overview

Small but tough

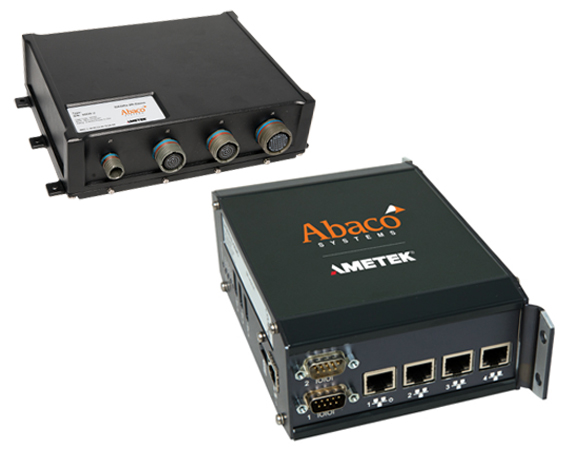

The DAGRX is a highly flexible rugged industrial small form factor (SFF) computer for a modular and scalable approach to system design and architecture with variants for both lab and rugged use. When a 3U VPX system is either too large for the given space constrictions or too costly, DAGRX allows developers to focus their resources and priorities on software and intellectual property instead of hardware.

The rugged units are designed to be deployed in harsh environments (up to IP67, -40°C to +85°C baseplate). Lab variants can be used for development and test as well as full deployment in moderate environments (up to IP54, -20°C to +60°C baseplate). These computers address the need for ultra-compact, rugged computer systems for data and I/O processing in 8-36VDC applications in both commercial and military sectors and are ideal for use on mobile applications including industrial AGVs, off-road utility equipment (forestry, agriculture, construction, mining, etc.), railway, maritime, and avionics applications.

Modularity is the key

The DAGRX incorporates Intel’s smallest footprint CPU, the Intel ATOM® E3845 Quad Core 1.91 GHz, and is a best-in-class ultra-low SWaP-C solution. Power consumption depends on configuration but is typically around 13W@28VDC. It has extensive I/O flexibility and can be configured with: MIL-STD-1553, ARINC 429, GPS, serial I/O, Wi-Fi, digital I/O, 12-bit A/D, and CANbus, and up to five 1000BASE-T ports. All variants come standard with USB2.0, USB3.0, RS232. DAGRX supports Linux and Windows operating systems.

Specifications

Application
Development, Rugged, Embedded
Cooling
Convection, Conduction
Environmental
MIL-STD-810G, DO160, MIL-STD-461G
Ethernet
1000BaseT
Form Factor
Small Form Factor Package
I/O
ARINC 429, Audio, CANbus, GPS, Serial, USB, RS 232/422/485
Military Specifications
MIL-D38999 connectors, MIL-STD-810G, DO160, MIL-STD-461G
Operating System (OS) Support
Linux, Windows
Operating Temp
-40°C to +85°C
Processor
Intel Atom Quad Core 1.91 GHz
Storage
1-8 TB SSD (optional)
Variable Voltage
Yes
Weight lb (kg)
~3 lbs (~1.4 kg)

Block Diagram
